We Sells Fin Tube Material

Spesifikasi

Fin Tube Material

FINNED TUBE COIL / RADIATOR Radiator use in many industrial applications and it’s an important part in process, both in Cooling or Heating. We design and manufacture many type of Radiators, for Low or High Temperature, used for many kind of process. Radiator used in so wide in industry and so many size and type of material or size in used, we always keep in stock a wide range of Finned Tube or fast delivery. For a new installation we have a wide choice of standard radiator size with many type of Finned Tube for many different applications. We keeping improving technology and quality control to meet customer’s request is the reason why we got great reputation in Heat Transfer Equipment.

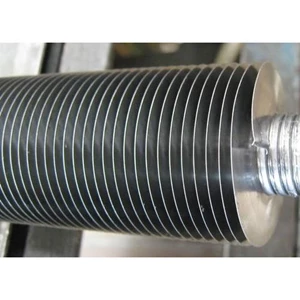

Helically Wound High Fin Tubes 'G' Fin (Embedded Fin)The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat transfer is maintained at high tube metal temperatures. Maximum operating temperature for this fin type is 450°C.

'L' Fin The strip material is subjected to controlled deformation under tension giving the optimum contact pressure of the foot of the fin onto the base tube thus maximising the heat transfer properties. The foot of the fin considerably enhances the corrosion protection of the base tube. Maximum operating temperature for this fin type is 150°C.

'KL' Fin Manufactured exactly as the 'L' fin except that the base tube is knurled before application of the fin foot. After application the fin foot is knurled into the corresponding knurling on the base tube thereby enhancing the bond between the fin and tube resulting in improved heat transfer characteristics. Maximum operating temperature for this fin type is 260°C.

 'LL' Fin Manufactured in the same way as the 'L' fin type except that the fin foot is overlapped to completely enclose the base tube thereby giving excellent corrosion resistance. This type of tube is often used as an alternative to the more expensive extruded type fin in corrosive environments. Maximum operating temperature for this fin type is 180°C. Material Spesification : Base tube O/D : From 5/8” ( 15.88 mm ) to 2” ( 50.8 mm ) Fin heigh : From ¼” ( 6.35 mm ) to 1” ( 25.4 mm ) Fin pitch : From 5 fins per inch to 12 fins per inch ( 196 fins /meter to 473 fins / meter ) Fin thickness : From 0.012” ( 0.03 ) to 0.031” ( 0.76 mm )
