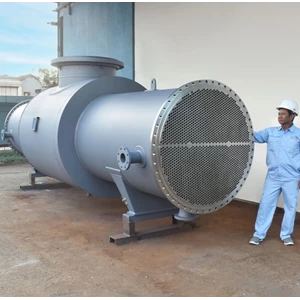

Tube Bundle Heat Exchanger

Our company produces and sells tube bundles according to your needs.

Tube bundle, or tube bundle, is a collection of tubes arranged in parallel and placed in the shell of a heat exchanger. These tubes function as a flow path for the fluid whose heat is to be transferred.

Key functions of a tube bundle:

• Increase surface area: The more tubes within the bundle, the greater the overall surface area available for heat transfer. This enhances the efficiency of heat exchange between the fluid inside the tubes and the fluid outside the tubes.

• Support the heat exchanger structure: The tube bundle plays a crucial role in maintaining the rigidity and stability of the heat exchanger.

Types of tube bundles:

• Fixed tube sheet heat exchanger: This type offers a simple and cost-effective design, but doesn't allow for mechanical cleaning of the tubes.

• Floating head heat exchanger: This design incorporates some free movement at the top of the tube bundle, facilitating tube cleaning.

• U-tube heat exchanger: The tubes in this bundle are U-shaped, eliminating the need for connections within the shell. This improves reliability and reduces the risk of leaks.

• Shell and tube heat exchanger: This is the most common type of heat exchanger, featuring a tube bundle inside a shell containing another fluid.

Tube bundle material:
The material chosen for the tube bundle must be resistant to corrosion, high temperatures, and operating pressures. Common materials include:

• Carbon steel: An economical option for applications with moderate temperature and pressure requirements.

• Stainless steel: Provides superior corrosion resistance compared to carbon steel, making it suitable for applications involving corrosive fluids.

• Copper: Boasts high thermal conductivity, ideal for applications demanding rapid heat transfer.

• Titanium: Offers exceptional corrosion resistance and strength at high temperatures, suitable for highly demanding applications.

Applications of tube bundles:
Tube bundles find use in various industrial applications, such as:

• Heat exchangers: Used to transfer heat between two fluids, common in power plants, chemical factories, and food processing industries.

• Condensers: Used to condense vapor into liquid, as seen in refrigeration systems.

• Evaporators: Used to convert liquid into vapor, employed in heating and air conditioning systems.

• Preheaters: Used to preheat fluids before they enter subsequent processes, found in boilers and incinerators
